face detection turnstile system

Face Recognition turnstile is a self-designed hardware turnstile based on Beijing San Moruo, which adds a face recognition module. It collects visitors' face information and determines the access rights through certain algorithm processing. It is usually used in public places instead of manual auditing . For example, nowadays countries advocate face recognition system applied to train stations, airports, subway ticket examination. Effectively ensure that holders of valid votes to smooth passage, improve work efficiency and save on financial expenses. In addition, the application areas are more extensive, such as high-end office buildings, cinemas, exhibition centers, libraries, stadiums, tourist attractions, etc., not only to achieve the channel of high controllability, but also to meet the indoor and outdoor decoration design and beauty Practicality.Face Recognition turnstile


First, the design

Face recognition turnstile unidirectional recognition set freely, the device can not only ensure the speed and control accuracy, but also can intelligently identify the direction of entry and exit to meet the import and export channels of two-way personnel management requirements, not only reduce costs, but also greatly save space. The combination of high-end face recognition technology and a unique turnstile design make it suitable for a wide range of channel monitoring environments and any combination of channel installations for use with most access control systems.



Second, the application:

National advocated face recognition system is mainly applied to the railway station, airport, subway ticket examination. Effectively ensure that holders of valid votes to smooth passage, improve work efficiency and save on financial expenses. In addition, the application areas are more extensive, such as high-end office buildings, cinemas, exhibition centers, libraries, stadiums, tourist attractions, etc., not only to achieve efficient controllability of the channel, but also to meet the aesthetic design of indoor and outdoor decoration and Practicality.

Security management: railway stations, high-speed rail stations, subway stations, coach stations and so on

Real-name management: government agencies, financial institutions, social security agencies, classified agencies and so on


Access Management: buildings, office buildings, scenic spots, exhibition halls, museums, communities, villas, etc.

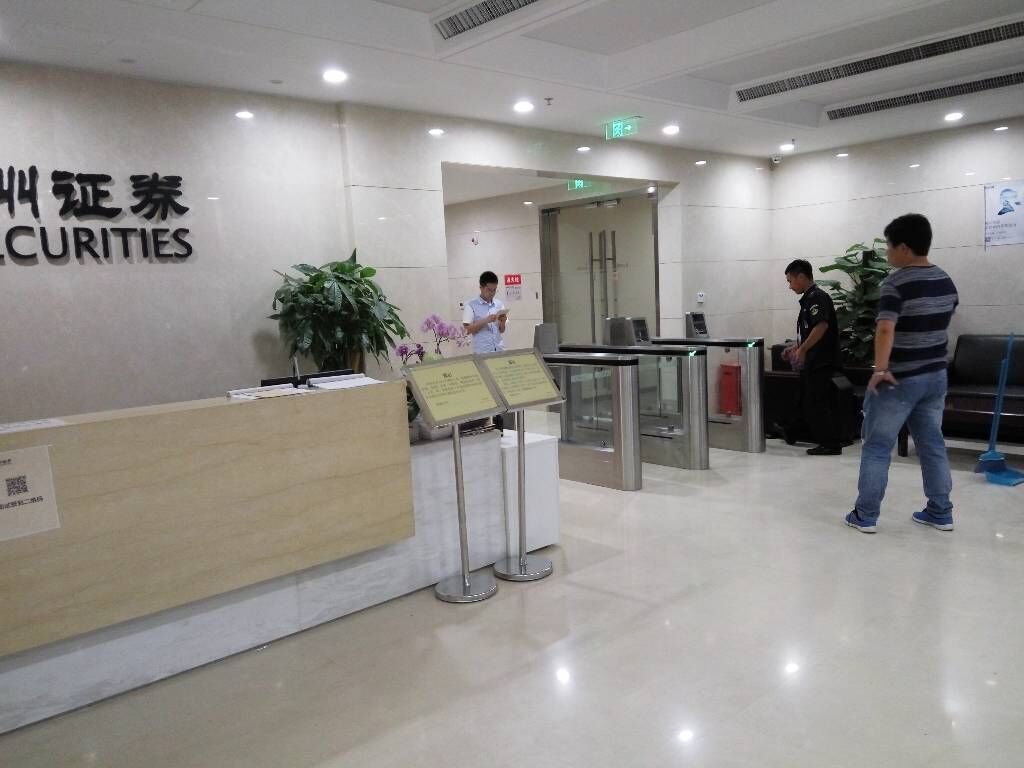

recognition turnstile

Third, the technical parameters

1. Box Material: Standard stainless steel (304)

2. Box material: 304 stainless steel

3 box size: 1500 × 200 × 990mm

4. Surface Treatment: Drawing (default) / paint (custom)

Brake material: plexiglass (default) / tempered glass (custom)

6. Brake swing angle: 90 ° (one-way traffic); ± 90 ° (two-way traffic)

Channel width: 650mm (default)

8. Power supply voltage: AC 220V / AC 85 ~ 230V

Working voltage: DC 24V

10. Mechanical movement: FRBTTM non-destructive movement

11. Drive motor: Brushless DC motor

12. Communication Interface: RS485 / RS232

13. Standby power: 40W

14. Passenger speed: 30 ~ 45 people / minute

15. Working environment: indoor

16. Operating temperature: -15 ~ 60

17. Relative humidity: 0 ~ 95% (non-condensing)

18. Control I / O: 6 relay outputs / 4 dry contact signal inputs

Camera (built-in)

1. pixel: 1.3 million pixels

2. Sensor: 1/4 CMOS sensor

3. Interface: Standard USB2.0 drive-free plug and play, compatible with USB1.1 interface

4 special effects: support for multiple effects, need to install drivers

5. Wire: 1.5 m USB copper wire, super anti-oxidation, shielding dry.

6. Chip: Taiwan 628 + 7786 high-end industrial chips

7. High-definition color lifelike, longer life

8. Output resolution: 640 * 480 (optional 1280 * 720P)

9. Output format: MJPG (optional YUY2)

10. Night vision function: None (can be customized 6 850 infrared LED lights)


11. Operating system: support system WindowsXP and the latest Vista, win7, win8, Andrews / Linux system supports standard UVC, can make this product, without driver plug and play.

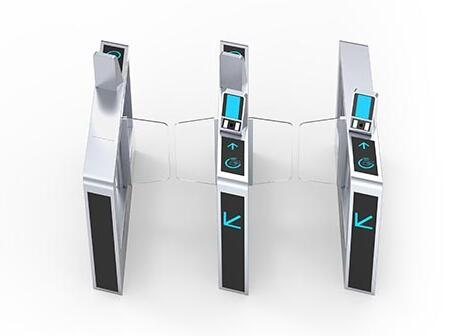

facial recognition turnstile

Second generation card reader (built-in)

1. RF technology: in line with ISO14443 Type B standard

2. Security module: ID verification system dedicated module

3.Reading distance: 0 ~ 50mm

4.CPU frequency: 50MHZ, 32-bit ARM

5 sensing area: 100 × 100mm

6. Reader time: <1s

7. Working frequency: 13.56MHZ

Modulation: ASK and BPSK

9. Verification: Cyclic Redundancy Check (CRC)

10. And the card communication rate: 106kbps

11. Communication Interface: RS232 or USB communication interface

LCD screen

1. Screen Size: 7-inch LCD screen

2. Interface Type: LCD Driver: Intel8080-16 bit parallel port;

3 color format: RGB565

4. Color depth: 16 bits

5. Memory pages: 8 pages

6. Memory capacity: 8MB

7. LCD resolution: 800 * 480

8. Overall dimensions: 100mm * 180mm

Industrial host (built-in)

1. CPU: Intel Celeron 1037U, 1.8G dual-core CPU

2. Chipset: HM77 chipset

3. Graphics: Integrated HD graphics, support for DX10.1 and HDCP, support VGA + HDML synchronization

4. Memory: Supports 1 DDR3 1333/1600 DIMM memory slot

5. NIC: Two Gigabit Ethernet NIC

6 hard drive: support Msata3 ssd and a 2.5-inch laptop hard drive, dual hard drive support

7. I / O Interface: 8 USB (4 USB2.0 and 4 USB3.0), 1 VGA, 1 HD Video, 4 COM ports, 2 RJ-45 ports, 2 audio mouth

8. Power: 12V power adapter

9. Chassis: Size: 234 * 150 * 43mm

10. Operating temperature: -20 ℃ to 60 ℃

11. Working humidity: 0% ~ 90%, non-condensing

12. System: Support for a variety of operating systems Windows, Windows 7, Windows 8, Linux

13. Power Support: DC IN 12V power supply

Machine power consumption: 25W or so

15. Weight: about 1650g

15-inch touch screen monitor mount (optional)

Used to display personnel information

Fingerprint module (optional)

Acquisition window size 20.0mm × 27.0mm

Effective area 14.4mm × 18.5mm

Image pixels 256 × 360 pixels

Image resolution 500 DPI

Image grayscale 256gray-level

Dynamic grayscale> 150 levels

Acquisition time <0.25S

Image size of about 100K Bytes

Electrostatic immunity ≥15 KV
